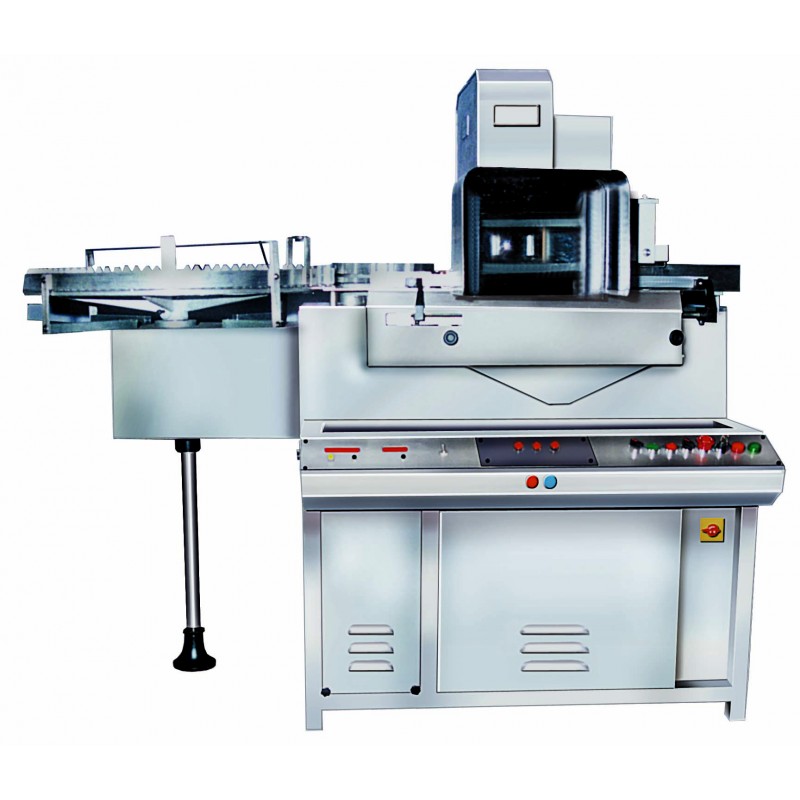

Semi Automatic Optical Visual Vials Inspection Machine

SALIENT FEATURES:

• All contact parts in stainless steel and approved engineering plastics.
• Spinning of vial Magnified view with back lighting
• Clear view of four vials.
• Modular and compact ejection system.
• Rotation of spinners can be adjusted to give desired vortex on liquid
• Easy access for cleaning and maintenance.
• Large inspection to transport time ratio..
• Facility of repeat cycle.
• LED as well buzzer assisted safe rejection.
• Counters for good and reject products.

OPERATION:

• The filled vials are loaded in to the infeed turntable from where they are transferred in batches by an index wheel onto a linear transfer rack.
• The rack transfers the vials onto the inspection station, where spinners spin the vials at a predetermined RPM so that a vortex is formed. Illumination from behind the vials assists in light refraction of particles/fibers .
• An operator views four vials through a magnifying glass.
• The vials are rejected by pressing rejection switches ergonomically located for operator convenience. A numbered light positioned just above the magnifying lens within the operator's field of vision lights up indicating a rejection In case a recheck is desired before checking the next lot, a facility for repeat cycle is provided.
• The vials batch is then transferred onto the rejection station where the vials rejected at the inspection station are automatically ejected out. A numbered light lights up above the lens indicating a positive rejection taking place. In addition a rejection LED as well buzzer assists in tracking the actual rejects of objects
• The accepted vials are transferred onto the collection station where there are collected in a tray.
