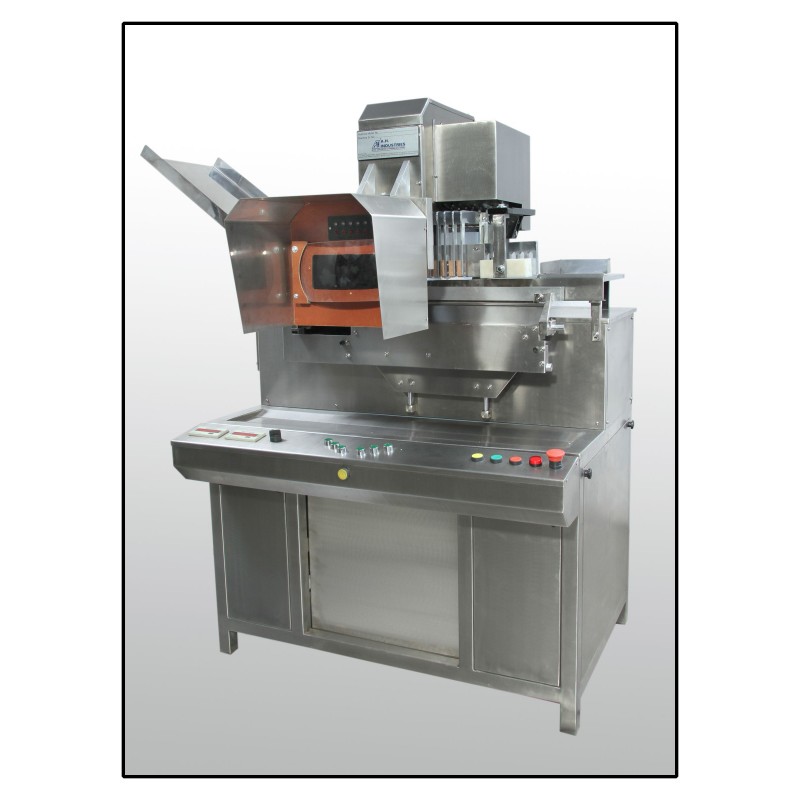

Semi Automatic Optical Visual Ampoule Inspection Machine

Semi Automatic Optical Visual Ampoule Inspection Machine

Semi Automatic Ampoule and Vial Inspection Machine is available in varied dimensions as per the needs of the clients. These are widely used in various industries for carrying out the inspection process and are offered at competitive prices. In our range of inspection machines.

We are engaged in offering a wide range of Automatic Ampoule/Vial Inspection Machines. These are available with four tracks that are fabricated using nylon-6 rollers chain and are offered at competitive prices. Further, these are available with a spinning assembly that has A.C. Drives Rejection Units with 24V DC wiring. In addition, these can be availed with optional accessories like A.C. Frequency Drive for Speed Control Separate Machine that is required for ampoules and vials.



  • Spinning assembly is provided with A.C. Drives
  • Rejection units with 24V DC wiring.
  • A.C. Frequency Drive for Speed Control
  • Separate machine is required for ampoules and vials.
Model AEAIM
Input Specification:
Ampoules
Vials
1ml to 5ml
2ml to 30 ml vials
Output/hour 4000 to 5000 per hour
Electrical Rating 0.5 HP main machines, 0.25 HP Spinning assembly
Power Characteristic 415 volts, 3 phase, 5 wire system and 50 cycles/sec.
Finish/Painted S.S. Finish
Overall Dimensions 1500 mm (L) x 1200mm (W) x 1575mm (H)
Net Weight 700 Kgs.

* Specification can be changed as per customers’ requirements
