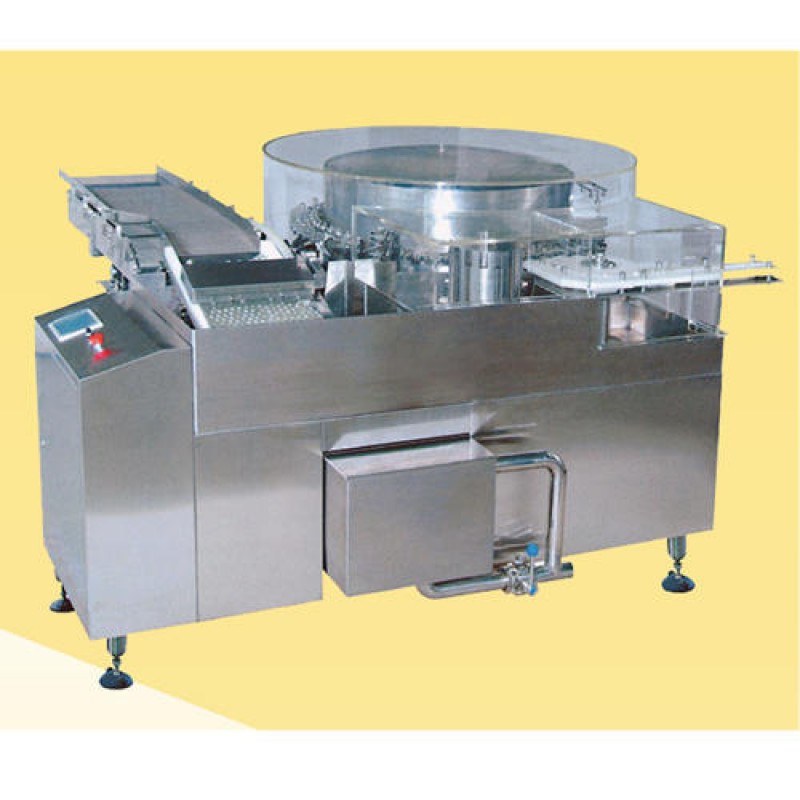

Rotary Bottle Washing Machine Model

Rotary Bottle Washing Machine Model

Rotary Bottle Washing Machine, operates on the rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles. AE-RBW model is suitable to wash various types of Bottles ranging from 15 ml to 1000 ml size with maximum speed of 100 bottles per minute. Machine construction is in Stainless Steel finish including frame structure. All parts used in contact with washing zone and Jets are made from stainless steel 316 Material. Intermittent handAEng of Bottles ensures the maximum time for washing. Machine also offers various customised options for washing sequence as per customers’ requirements. Washing process takes place with Four different Washing Zones for optimum washing. Machine also equipped with external washing of Bottles. We can also customise the machine to suits special type of bottle or size and also washing sequence. We have also another lower capacity Model AE-RBW 64 with speed of 60 bottles per minute for lower speed requirement and also require small area compare to AE-RBW 100.

This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles

  • 16 Jets for each washing zones
  • All contact parts made of SS-316 material
  • Machine construction is in SS-304 material
  • Suitable for 15 ml to 1000 ml Bottle Size*
  • Machine with Geneva-Cam Mechanism
  • Washing sequence can be made as per customers’ requirements.
  • Built-in 2 Pumps and 2 Tanks
  • Machine main drive with Safety Clutch System
Model No. AEBW 60 AEBW 120
Output 40 to 60 Bottles/ Minute 60 to 100 Bottles/ Minute
Suitable for 15 ml to 1000 ml Bottles*
Water Consumption 450 to 650 Litre per hour
Washing Cycle 4 Inner + 1 Outer (Inner wash sequence are inter changeable)
Water Tank 2 nos. each with 50 Litres.
Capacity Product Diameter: 85 mm* Maximum
Electric Supply 415 VAC Three Phase Power Supply 415 VAC Three Phase Power Supply
Power 2.5 H.P. 2.5 H.P.
Working Height 860 – 910 mm
Overall Dimensions 2100 mm (L) x 1820 mm (W) x 1500 mm (H)
Net Weight 450 Kgs. 550 Kgs.
