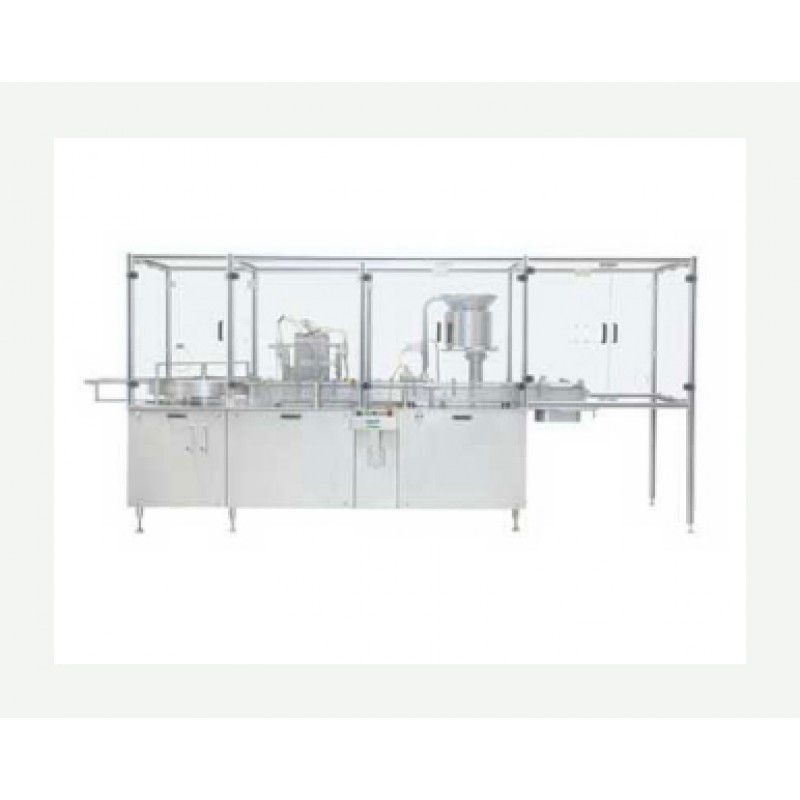

Automatic Four Head Volumetric Linear Liquid Filling Machine Model: AEBF 4 is suitable for Bottles with maximum speed of 80 Bottles per minute. The output of Bottle Filling Machines depending on nature of Liquids, Bottle Diameter, Bottle Height, Bottle Neck Size and Fill Volume. Machine construction in fully Stainless-Steel finish including machine frame structure. Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing Bottles for smoother operation. All parts coming in contact with Liquids are made from SS316 Materials.
| Model | AEBF 4 |
| Bottle Diameter | 30 mm to 100 mm |
| Filling Range | 30 ml to 500 ml with help of Change Parts/ Syringe |
| Accuracy | +/- 1% Depending on Liquid with Single Dose |
| Electrical | 440 Volts, 3 Ph. 50 Hz. 4 Wire System |
| Power | 2 H.P. |
| Speed | 80 Bottles Per Min |
| Syringe Filling Range | 10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml |
| Conveyor Height | 800 – 850 mm ± |
| Net Weight | 350 Kilograms |
* Specification can be changed as per customers’ requirements
Automach Engineers enjoys manufacturing excellence in the field of industrial machinery for pharmaceuticals sector. Automach Engineers has goal to provide highest quality, most cost effective equipment solutions.
