Automatic External Vial Washing Machine

Automatic External Vial Washing Machine

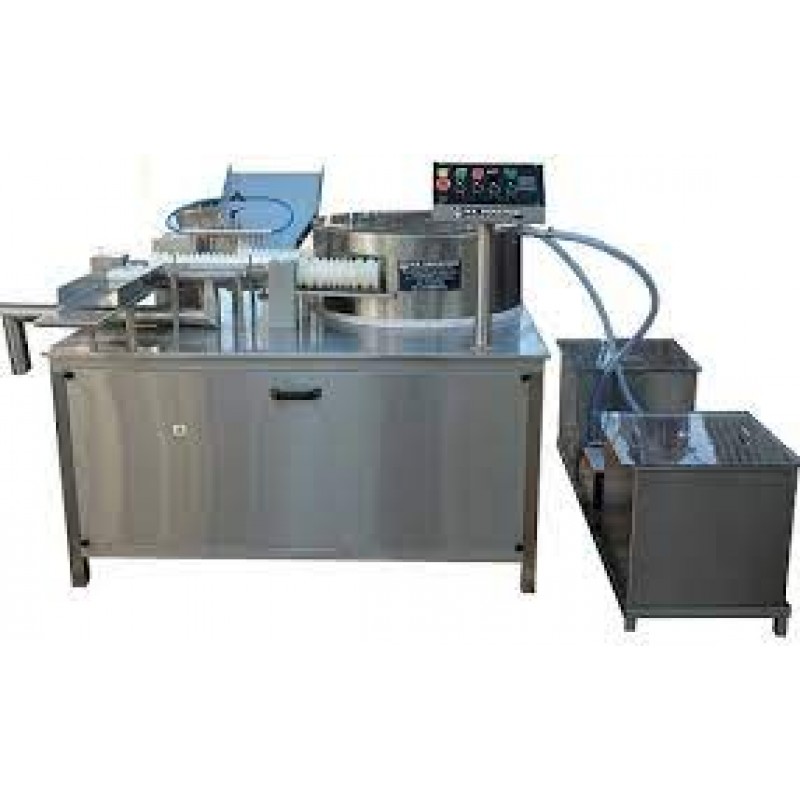

Automatic External Vial Washing Machine: Model AEEW 250 is designed to wash the outer surface of round shaped Vials (5 ml to 100 ml vials) This machine washes the outer sides of vials and eliminates the particles that are formed on the Vials, which are previously filled and sealed.

Vial external washer machine is fitted with after capper machine is injectable vial external washer machine / injection vial external washer machine, oncology vial external washer machine and aseptic processing lines, speed up to 120vpm , vial surfaces involves the destruction or removal of any possible product residual so as to prevent them infecting the operators and cross contamination between containers and machine, as well.

From the infeed Turn Table the vials are fed into the External Vial Washing Machine conveyors. The machine consists of two conveyors on which the vials are properly fed and transported from in feed Turn Table for the washing operation. Two operations are carried out on this machine. First the vials are washed by water jet and then dried by air jet. On the sides of the conveyor a set of spray nozzles are fitted on each conveyor for water jet. One set of knifes blocks are provided on each conveyor for air jet The air is sprayed through this knifes.

The Knifes are fitted in a inclined manner which ensures that the air that is sprayed reaches each corner of the vial which are previously washed. After washing and drying the vials are guided to the outfeed Turn Table. Before reaching the outfeed Turn Table a special arrangement is provided to dry the vial from the bottom side.

A set of syringes are provided on the sides of each conveyor at the exit end which sprays the air jet on the bottom part of the vial resulting in the drying of the vials This machine is completely operated by PLC. A covering of Acrylic cabinet is provided in the machine which when opened up during the operation immediately stops the supply of water & air and shows the indication with alarm in the PLC.

  • Infeed hopper.
  • Imported Gear Motor for main drive, unscramble and scrambler.
  • A.C. Frequency Drive for main drive, unscramble and scrambler.
  • “No ampoule – No Washing” system.
  • Acrylic Cabinet for machine.
  • Total cGMP model.
  • S.S frame structure.
  • Can handle ampoule sizes from 1ml to 10ml with the help of Change Parts.
  • Easy cleaning & maintaining.
  • Machine can be equipped with PLC system optionally.
  • Normal water required for washing. No hot water required.
  • Pneumatic Air: Filtered, oil free, sterile low-pressure Air at 5kg/cm (4/6 bar) 150 CFM.
  • Water supply: 120 litre/ hour (approx.)
  • Note: You can reuse the drain DM water which is used in the Vial Washing Machine.
  • 5ml to 100ml vial (Dia. 25 mm to 52 mm max.)
  • Height: 38 mm to 120 mm
Model No. AEEW 250
Direction Left to Right
Production Rate Up to 200 vials/ min
Electrical Supply 440 Volts 3 Phase 50/60 Hz (5 wire)
Power Requirement 2 HP
Height of Conveyor 900mm (approx.)
Dimensions 1800mm (L) X 1200mm (W) X 1200mm (H)
Net Weight 550 kgs. (approx.)
Gross Weight 1211 kgs. (approx.)

* Specification can be changed as per customers’ requirements
