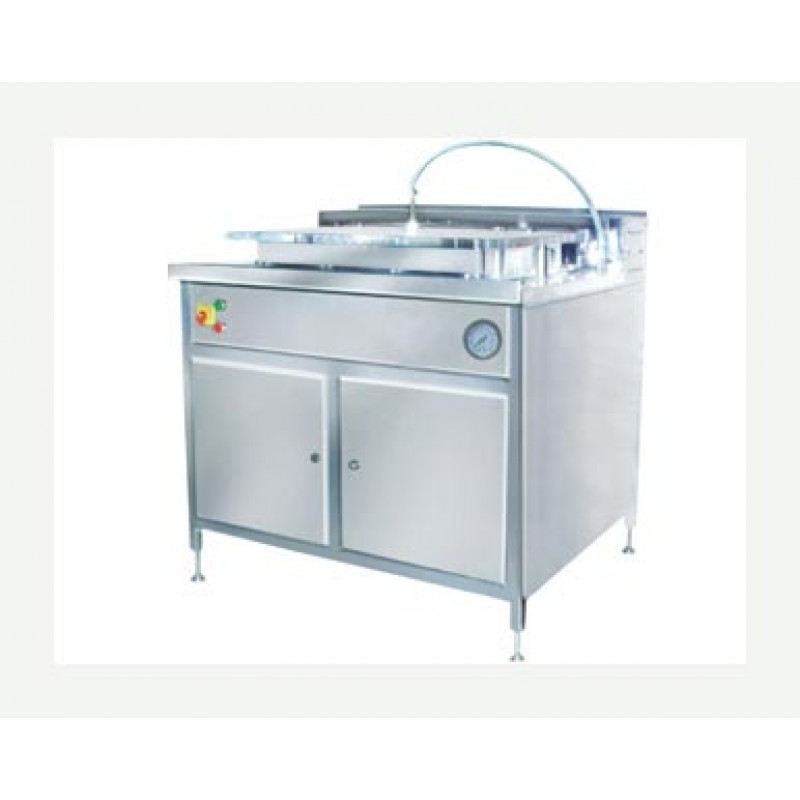

Automatic Rotary Vial Washing Machine is designed to wash glass vials without contact of non-contact machine parts with glass Vials. Automatic Rotary Vial Washing Machine model is having gripper system to holds the vial from Neck and invert the vials till the washing operation takes place than again after washing process release the vial on outfeed star wheel arrangement in vertical position this ensures positive wash of vials. Our machine model is suitable to wash 2ml to 100ml Glass Vials/ Containers with the help of change parts. Glass Vial feeds through Turn Table to infeed Star Wheel and specially designed Gripper hold the Vial from neck and invert the vial and move it further on rotary moving system for Washing process.
machine having gripper to hold the vials from nech and ivert the vials till the washing operation completed and again after washing release the vials on outfeed feedworm system in vertical position ensure positive wash of vials. machine is suitable to wash 2ml to 30ml vials with help of change parts.
rotary vials washing machine suitable for application in Pharmaceutical & Biotech Industries, The Vials traveling in neck down position above washing Needles and moves along with the Needle bar ensures maximum time for washing once the needle enters in the vial neck. Machine with Standard Six Different Washing Stations each of 6 Needle for optimum Washing and the sequence can be change as per customers specific requirement. This machine model is 0 also having external wash mechanism for optimum washing of Vials.
each vials must be sterile before it goes in to sterile filling area. vials are held by grippers which will invert its position to allow servo driven nozzles moving vertically in order to wash vials from the inside. It has 6 washing stations covered in dome, providing three types of internal water washes such as Recycled Water Wash, Purified Water Wash & WFI wash and three air washes where as to clean external surface it has one water and air wash controlled by PLC.
| Model | AEVW 120 | AEVW 240 |
| Suitable For | 2ml to 100ml Vials with the help of change parts | |
| Production Output | Max. 120 per minute | Max. 240 per minute |
| Input Specification | ||
| Vial Diameter | 14mm to 56mm | 14mm to 56mm |
| Vial Height | 32mm to 110mm | 32mm to 110mm |
| Power Specification | 4 H.P., 3 Phase 50 Hertz, 4 wire system | 4 H.P., 3 Phase 50 Hertz, 4 wire system |
| Optional Accessories | Programmable Logic Control (System) with MMI Aluminium Profile Cabinet covering full machine | Programmable Logic Control (System) with MMI Aluminium Profile Cabinet covering full machine |
| Utility Requirement: | ||
| Air Consumption | 20 CFM | 20 CFM |
| Water Consumption | 250 to 500 Litre per hour depending on Vial Size | 250 to 500 Litre per hour depending on Vial Size |
| Water Tank & Pump | 2 nos. each with 25 Litres Capacity & Centrifugal pumps | |
| Conveyor Height | 875-950 mm adjustable | |
| Overall Dimension: | 2050mm (L) X 2000mm (W) X 1210mm (H) | 2450mm (L) X 2000mm (W) X 1300mm (H) |
Automach Engineers enjoys manufacturing excellence in the field of industrial machinery for pharmaceuticals sector. Automach Engineers has goal to provide highest quality, most cost effective equipment solutions.
