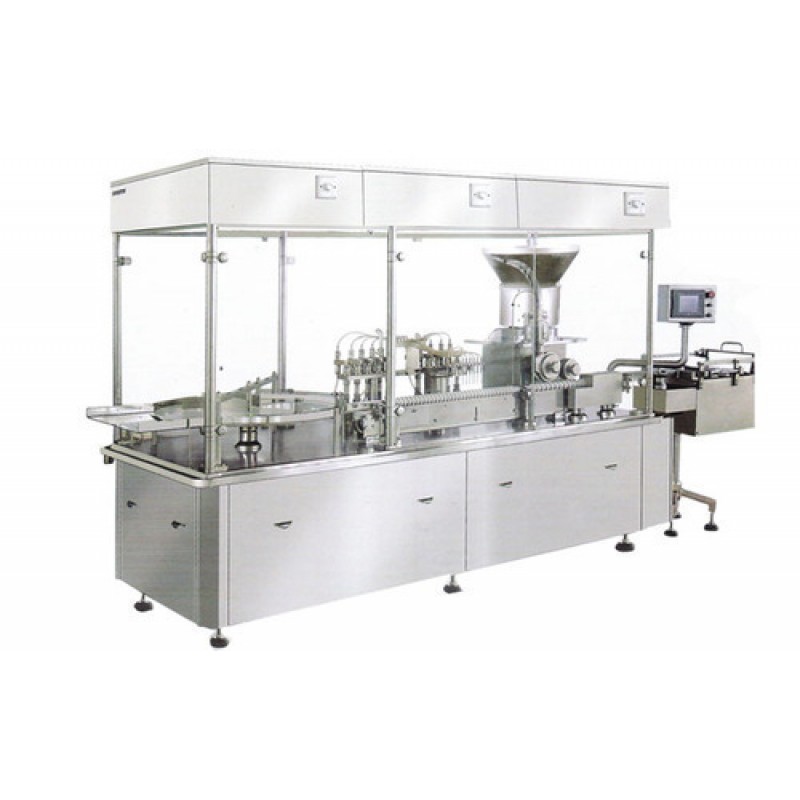

Automatic Liquid Bottle Filling Machine

Automatic Liquid Bottle Filling Machine

Automatic Bottle Liquid Filling Machine is compact, versatile and enclosed in elegantly matt finish body. This bottle liquid filling machine provides maximum output up to 80 bottles per min. This liquid bottle filling machine model is used in Pharmaceutical, Food, Dairy, Chemical, Cosmetic and Beverages industry. The speed of Bottle Filling Machines depends on nature of Liquids, container Diameter, container Height, container Neck Size and Filling Volume. Machine construction in fully Stainless-Steel finish including machine frame structure as per cGMP guidelines. Liquid Filling Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing Bottles for smoother operation. All contact parts of machine model are Stainless Steel 316 only.

For different types & formulation of liquids we offers wide range of bottle filling machine. The bottle liquid filling machine comes with a range of technologies that includes automatic liquid bottle filling machine, also widely been used in chemicals and detergent manufacturing industries. It makes use of diving nozzle for filling the containers that result in foam free filling operation. The automatic bottle filling machine is quite an efficient machine and with the ‘No Bottle No Fill’ system, it stops the machine operation in the absence of containers. It is a highly automated system with the infeed and exit of the bottle being automatically operated. The change over time required in the bottle filling machine is minimum and it has a built in variable frequency A.C. drive system. With an accuracy of +/-1%, the liquid bottle filling machine provides assurance of precise filling operation. For smooth operation, bottle liquid filling machine requires an electric supply of 220V A.C single phase.

  • No Bottle - No Fill System, No Bottle - Machine Stop System
  • All contact parts made of Ss316 material with easy removal system for Auto-Claving/Sterilization/Cleaning
  • Machine construction in SS 304 material
  • Diving Nozzle for Foam free filling
  • Very High Fill Accuracy
  • Automatic Infeed and Exit of Bottles
  • Minimum Change Over time
  • Unique Free Spinning Bottle Separator- No pneumatic operation
  • Built-in A.C. Variable Freq. Drive System
  • Automatic conveyor washing system.
  • Nitrogen flushing before and after filling.
  • PLC Control
  • Acrylic cabinet.
  • On line pre-inspection system.
  • Float tank (Holding tank) with or without stirrer.
Model No. Automatic Bottle Liquid Filling Machine
Bottle Diameter Up to 90 mm*
Filling Range 25 ml to 500 ml with help of suitable change parts / Syringe
Accuracy +/- 1% Depending on Liquid with Single Dose
Electrical 220 VAC Single Phase Power Supply (50 Hz)
Power 2.0 H.P.
Production Output Max. 80 Bottles per minute
Syringe Filling Range 10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml
Conveyor Height 800 to 850 mm
Overall Dimensions 1830 mm (L) x 800 mm (W) x 1550 mm(H)
Net Weight 350 Kgs.

* Specification can be changed as per customers’ requirements
