Semi Automatic Liquid Filling Machine

Semi Automatic Liquid Filling Machine

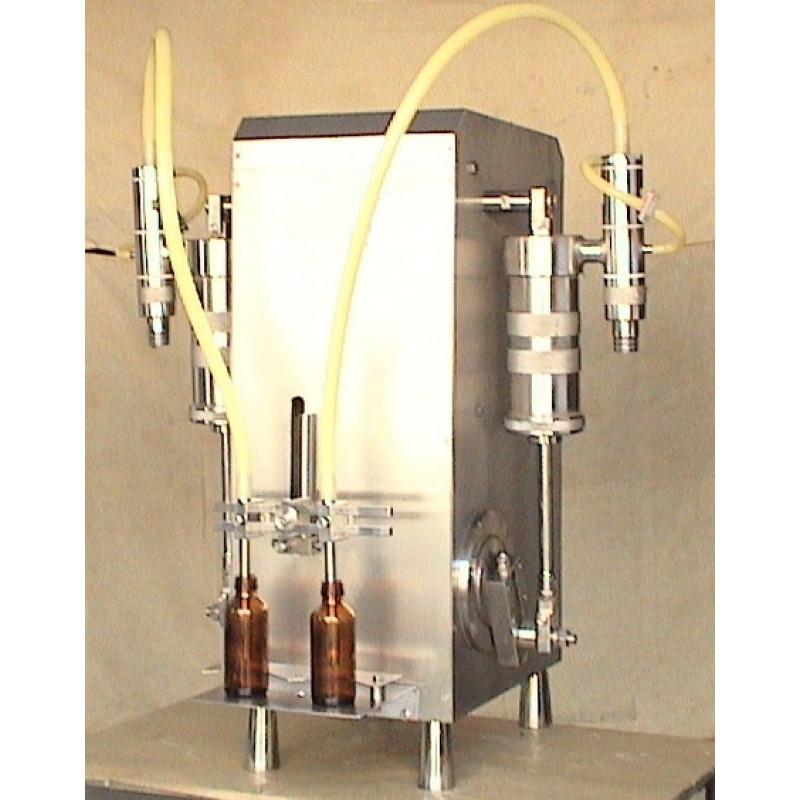

Semi Automatic Double Head Volumetric Liquid Bottle Filling Machine is suitable for Round or Flat shape Bottles or Vials with maximum speed of 25 Products per minute.

The Machine can give speed of 20 to 25 per minute depending on nature of Liquids, Neck Diameter or Vial/Bottle and Fill Volume. Machine suitable for small volume production having multiple products.

Machine construction in Stainless Steel finish with Double Head Operation. All parts coming in contact with Liquids are made from SS 316 Materials.

  • No Product - No Fill System
  • All contact parts are made of SS 316 material with easy removal system for Auto-Claving/Sterilization/cleaning
  • Machine construction in SS 304 material
  • Very High Fill Accuracy
  • Minimum Change Over time required
Model No Semi Automatic
Filling Range 50ml to 100ml* with the help of Change Parts / Syringes
Accuracy +/- 1% Depending on Liquid with Single Dose
Electrical 415 VAC Three Phase Power Supply (50 Hz)
Power 1.0 H.P.
Speed Max. 35 per minute
Syringe Fill Range 1ml to 5ml, 2ml to 10ml and 10ml to 50ml, 50ml to 100ml, 100ml to 250ml and 250ml to 500ml*

* Specification can be changed as per customers’ requirements
