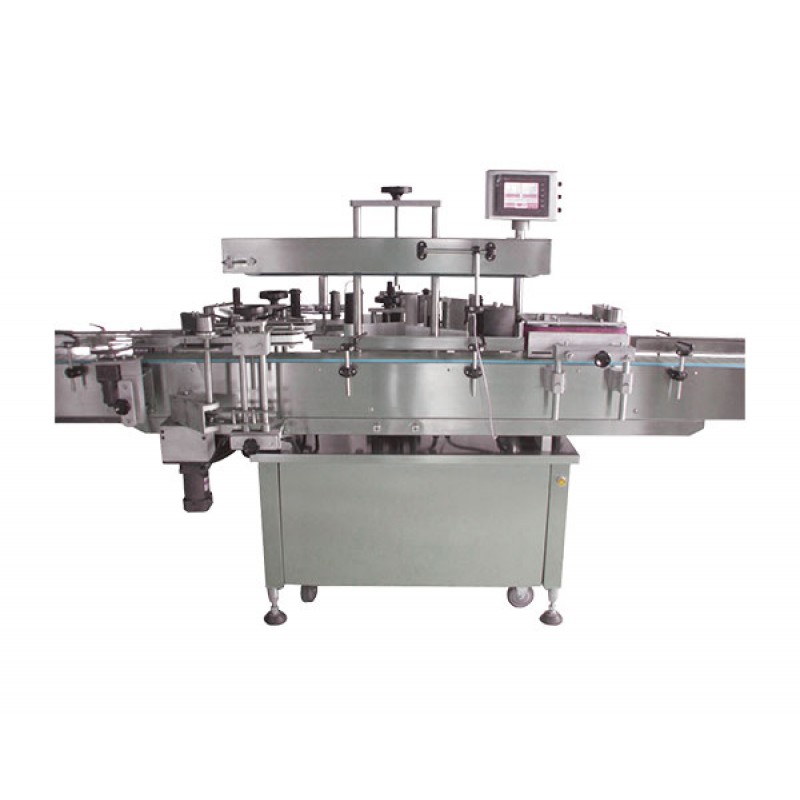

Automatic Single Side Flat Bottle Sticker Labeling Machine

video click here

Automatic Single Side Flat Bottle Sticker Labelling Machine is one of the most user friendly. Suitable for applying Front, Back or Side Labels on Flat/Oval/Square/Round shape containers with output Up to 120 Labels per minute depending on products Shape/Size and label size. Automatic Product Alignment system synchronised with top holding belt system. The Machine incorporates modern sophisticated Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. Machine also available with Optional Wrap-Round System makes it more flexible to use for Applying Single Side Label on Flat Bottles or Applying Wrap Round Label on Round Products.

The most versatile, elegantly designed linear labelling machine to meet the needs of major users of modern packaging lines, requiring high efficiency with speed, accuracy and durability. Easy to use adjustments, requiring a minimum tool or change of parts. Machine can be designed and supply with Robotised Twin Moving Pocket System or Twin Feed Worm System ensuring perfect alignment of bottles on conveyor for precise labelling application. Selection of Product Stabilizing system is depending on Product Shape, Size and required speed.

The Sticker Labelling Machine AE-BSL 1S has its own unique single point synchronised speed control system. The Inbuilt Automated Label Length detection systems eliminates any need for manually feeding and storing of Label Length data in memory and retrieving the same every time for change of Label Size & re-starting the machine. The System thus saves valuable time, avoiding machine-down time, and helps achieve higher production. Machine can be supplied with Optional Toughened (Tampered) Glass or Acrylic Safety Cabinet. Machines having required all basic features as a standard fitment to match the current market needs and also saves cost and time. AE-BSL 1S Series also available with another Model suitable for High Speed Single Side Flat Bottle Labelling with speed up to 250 Labels per minute.

Machine can be designed especially for applying Single Side Flat bottles as well as body / wrapround labels on Round Bottles as an optional feature.

No Label Data Input/retrievals require for any Label Size
No Change Parts for Label size, Feed Worm and Pocket System required for change
in product size
Single Pot On-line Speed Variation control
Synchronized speed of Label Dispensing, Conveyor and Top Hold Belt System
Virtually Maintenance free machine
Easy to change label application height
User Friendly Label Placing Adjustments
Self-Protected against Voltage Fluctuations
Suitable for On-Line Inkjet and Contact Coding System
Suitable for Partial, Full Wrap Around and Overlap Labelling
Built in A.C. Variable Frequency Drive System.
Fully Stainless-Steel Finish Machine
Refer Plug & Play Sticker Labelling UNIQUE FEATURES page for more details

Label Roll Empty - Machine Stop System with Alarm
Missing Label in Roll - Machine Stop System with Alarm
Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.
Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed range available.
Toughened Glass or Acrylic Safety Cabinet for Machine
Tower Light showing the machine status / operation
Colour or Mono Touch Screen with PLC for machine operation and showing various error messages and information on display
Special Sensing system for checking missing label on product
Low Compressed Air - Machine Stop with Alarm system for pneumatically operated coding system
Vision System for checking Barcode, presence or absence of Coding or Pharma code on labels
Vision System for checking Barcode, presence or absence of Coding or pharma code on labels
Online pneumatically operated product rejection system
Wrap Round Labelling Device for applying wrapround labels on round bottles.
Turn Table and Packing Conveyor (Turn Table suitable only for Round shape bottles)

Model No.	AESL
Label Height	8 mm to 70/90/120/150/180 mm Standard*
Label Length	12 mm Minimum
Label Roll Dia.	300 mm
Core Dia.	75/76 mm
Gap Between Two Labels	appx. 3 mm
Product Size	As per customers requirements* Feed Worm and Pocket System require for change in Product Size for Special Machine
Electrical	220 VAC Single Phase Power Supply (50/60 Hz)
Power	2.0 Amp
Capacity	0.75 Kw
Output	Up to 120 Labels per minute depending on Product and Label Size and up to 250 Labels per minute for Model AE-BSL 1S, the speed is also depending on stable movement of product on machine conveyor at higher speed.
Conveyor height	830-875 mm*
Overall dimension	1830 mm(L) X 910 mm(W) X 1400 mm (H)
Machine Direction of Movement	Left to Right from operator side

* Specification can be changed as per customers’ requirements
