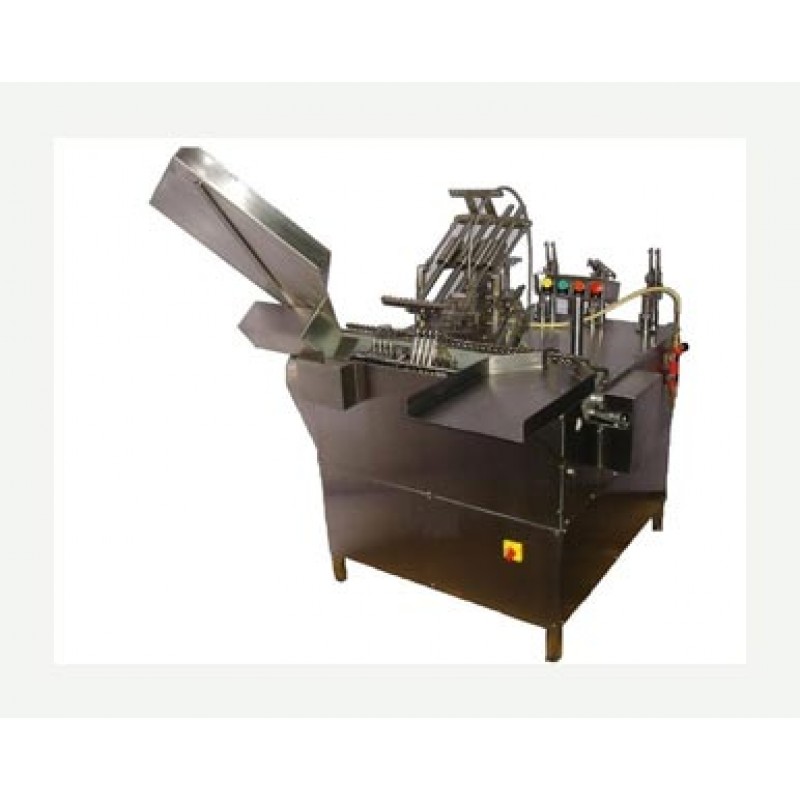

Closed Ampoule Filler and Sealer Machine Model: AEFS C is uses for filling and sealing of type D pre-sterilized closed ampoules. Machine built on principle of slant travel of ampoules while filling and sealing, to take care of vide variation of ampoule neck dimensions, thicknesses of available standard ampoules.
The Filling unit built on Stainless Steel Square pipe frame and totally encompassed with Stainless Steel Coverings, in pleasing matt finish. Further, large opening available at bottom side of the machine for easy cleaning. The pendant type electrical control panel is lifted from machine for ease of operation and safety. Amoule Filling & Sealing Machine is suitable for ampoule filling in pharmaceutical, cosmetic, agriculture and chemical industries.
Pre-Sterilized D Type Ampoule tray can be directly loaded into slant hopper of the machine. The magazine type cassette delivers closed ampoules on moving eccentric ampoule rack in one/two/four/six/eight’s. Ampoule rotating lever rotate the ampoules and extreme pressure of the gas heat the ampoules. Ampoule opening process is done by the manner of pre-heating and opening with the pressure of the gas (LPG + oxygen). During the stoppage of rack sequentially ampoule opening, pre-gassing, filling, post gassing, pre-heating and final sealing is achieved. Filled & sealed ampoules are collected automatically in SS tray in upright position without hand touch.
| Model | AEFS 1C | AEFS 2C | AEFS 4C |
| No. of Head | Single | Two | Four |
| Direction of Movement | Left to Right | Left to Right | Left to Right |
| Ampoule Handling Range | 1 ml to 10 ml | 1 ml to 20 ml | 1 ml to 5 ml |
| Production Output | 15 to 30 ampoules/minute | 30 to 55 ampoules/minute | 55 to 100 ampoules/minute |
| Filling Accuracy | ± 1% | ± 1% | ± 1% |
| Require Gas for Sealing | LPG & Oxygen (O?) | LPG & Oxygen (O?) | LPG & Oxygen (O?) |
| Nitrogen Pressure Required | 1 Kg. /cm2 | 1 Kg. /cm2 | 1 Kg. /cm2 |
| Oxygen Pressure Required | 1 Kg. /cm2 | 1 Kg. /cm2 | 1 Kg. /cm2 |
| LPG Pressure Required | 0.5 Kg. /cm2 | 0.5 Kg. /cm2 | 0.5 Kg. /cm2 |
| Power Specification | 0.5 H. P | 1 H.P. | 1 H.P. |
| Electrical Characteristics | 230 Volts, Single Phase, 50 Hertz, 4 Wire System | 230 Volts, Single Phase, 50 Hertz, 4 Wire System | 230 Volts, Single Phase, 50 Hertz, 4 Wire System |
| Contact Parts | Made from Stainless Steel 316L | Made from Stainless Steel 316L | Made from Stainless Steel 316L |
| Non-Contact Parts | Made from Stainless Steel 304 | Made from Stainless Steel 304 | Made from Stainless Steel 304 |
| Overall Dimension | 915mm (L) x 610mm (W) x 965mm (H) |
915mm (L) x 760mm (W) x 965mm (H) |
1200mm (L) x 1070mm (W) x 965mm (H) |
Automach Engineers enjoys manufacturing excellence in the field of industrial machinery for pharmaceuticals sector. Automach Engineers has goal to provide highest quality, most cost effective equipment solutions.
