Automatic Eye Drop Filling Plugging And Outer Capping Machine

Automatic Eye Drop Filling Plugging And Outer Capping Machine

Inquiry Now

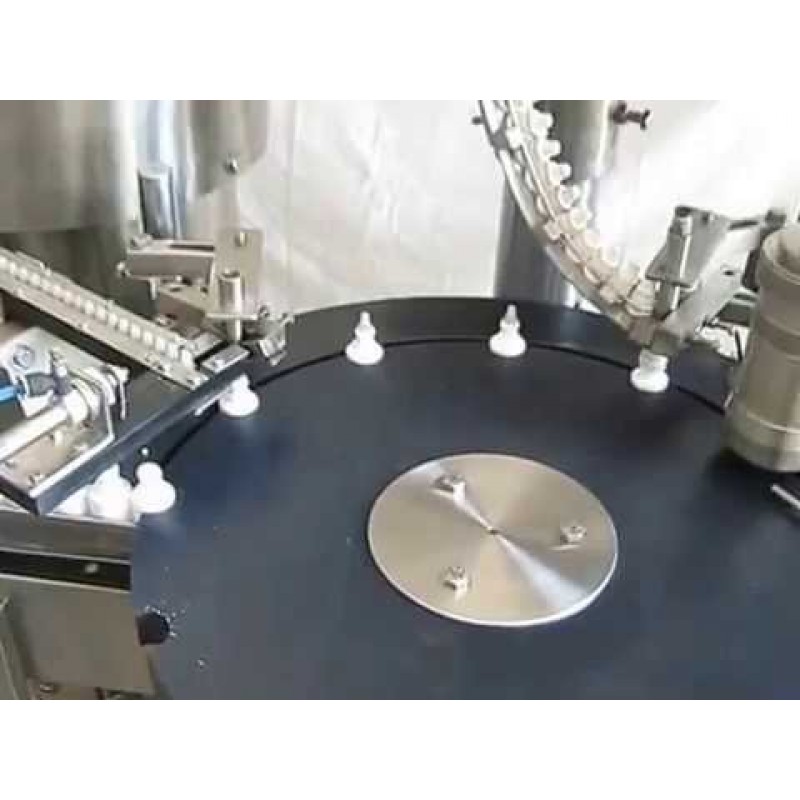

Automatic Eye Drop Filling Plugging and Outer Capping Machine  consists of one Side turntables, S.S. slat conveyor belt, eccentric pre-gassing, filling & post–gassing S.S. -316 nozzles precision-built S.S. – 316 Syringes, silicon rubber tubings, pneumatic system for inner cap placement, mechanical orientation type bowl & chute for outer cap placement, easy – reach compact panel etc. Due to its minimum distance between filling and stoppering, the risk of contamination is reduced. It is designed for operating in a sterile area and for utilizing it under laminar flow protection. The un-scrambler itself has been designed in the machine to eliminate dead ends and difficult to clean spot.



  • Filling, Inner Cap Placement & Screw Capping Unit is completely in corporate in single body Structure.
  • Pneumatic System for Inner Cap Placement
  • Mechanical Orientation type Bowl & Chute for Screw Cap Placement
  • All Liquid Contact Parts are of S.S. 316, the Body Structure is built up of S.S. 304 Pipe.
  • Co-eccentric Nozzles allows very quick and precise setting and making unit compact and manageable.
  • No vial, No Cap – Machine Stop System.
  • Easy reach compact panel provides ease and operation
  • Minimum Change over Time. From one size of container or fill size to another.
  • Each Important individual part required for autoclaving/ sterilization can be removed easily.
Model AE 40
Speed 40 to 60 Vials/ min.
Filling Volume 0.1 ml to 50 ml
Cap Diameter 20 mm, 25 mm & 28 mm
Filling Accuracy ±1 % on Single Dose
Power Characteristics 440v 3 Phase 50Hz 4 Wire System
Overall Dimension 900 x 900 x 1400 mm
Net Weight 550 Kilograms
